RYA-ZC 1300B High Speed Full Automatic Vacuum Forming Production Line
RYA-ZC 1300B 高速全自動真空成型機生產線

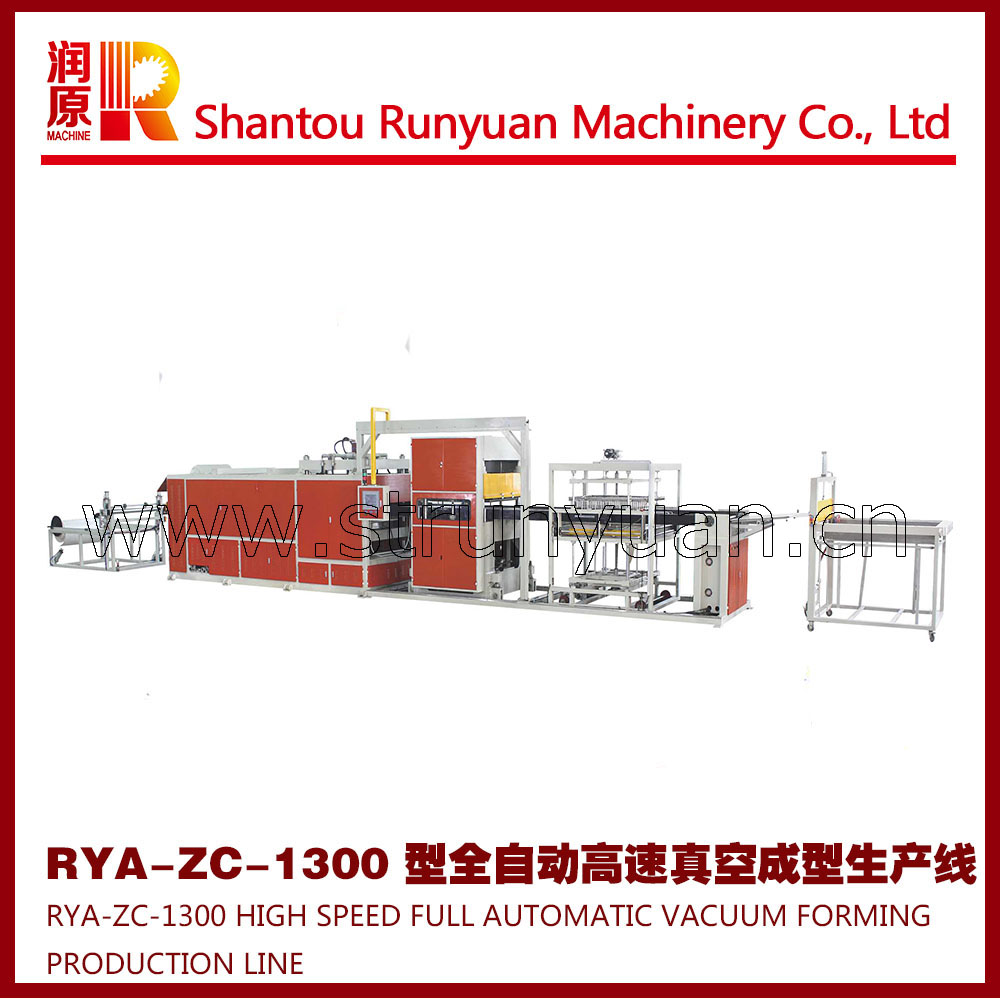

Machine Picture:機器圖片
Structural characteristics: 結構特性
RYA-ZC1300B vacuum forming line integrates forming, cutting, stacking and counting. It can reduce cost and save labor.
RYA-ZC1300B真空成型線，是成型、切割、堆疊、計數于一體。它可以降低成本，節省勞動力
This production line is developed by our company. It integrates vacuum forming (negative pressure forming), press forming (positive pressure forming), mold forming and comprehensive forming. Products can mainly be formed with vacuum, compressed air, dies pressure and synthetic method.
這條生產線是我們公司開發的。是真空成型(負壓成型)、壓力成型(正壓成型)、模具成型、綜合成型于一體。產品主要可以用真空、壓縮空氣、模具壓力和合成方法成型
This machine uses computer control system and HMI system. Servo, computer and vacuum system all adopt international brands.
本機采用計算機控制系統和人機界面系統。伺服、電腦、真空系統均采用國際品牌
It can produce lunch box, tray, plate, etc. which material is foam PS. This line possesses reliable stability, large forming area, high production and easy operation.
可生產以泡沫PS為原料的飯盒、托盤、盤子等。該生產線穩定可靠，成型面積大，產量高，操作方便
Parameter: 參數
Model 型號 | RYA-ZC 1300B |
Rated Power 額定功率 | 120kw |
Sheet Width 適用片材寬度 | 800-1080mm |
Max Forming Area *成型面積 | 1000×1300mm |
Capacity 生產力 | 25-35 time/min (adjustable) 25-35次/分鐘（可調整） |
Air Consumption 耗氣量 | 0.4-0.6mpa2m3 |
Max Forming Depth *成型寬度 | 130mm |
Dimensions 尺寸 | 14000×1950×2500mm |
Weight 重量 | 16T |

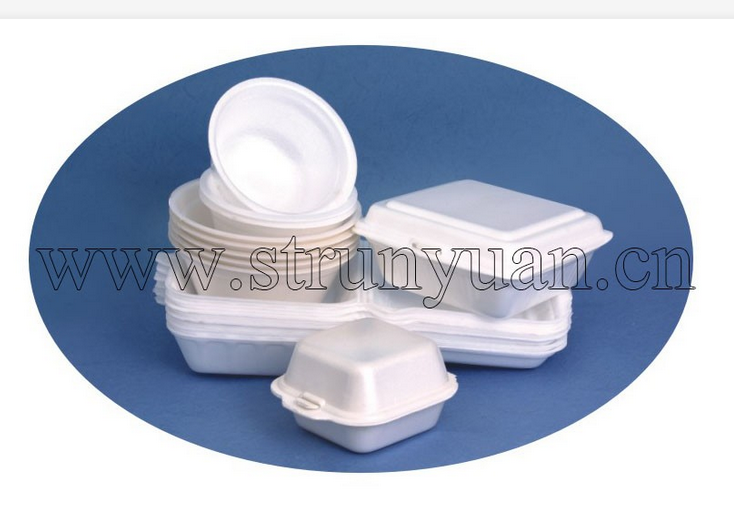

Sample Picture:樣品圖片

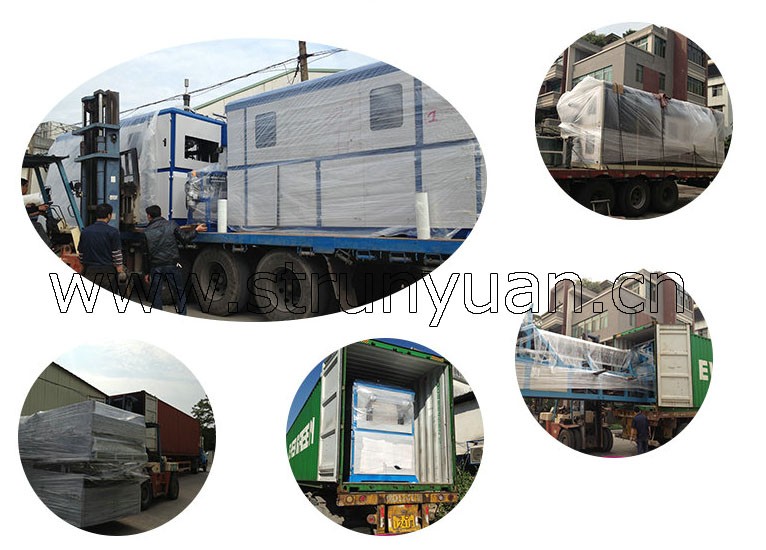

Loading & Delivery：裝柜圖片

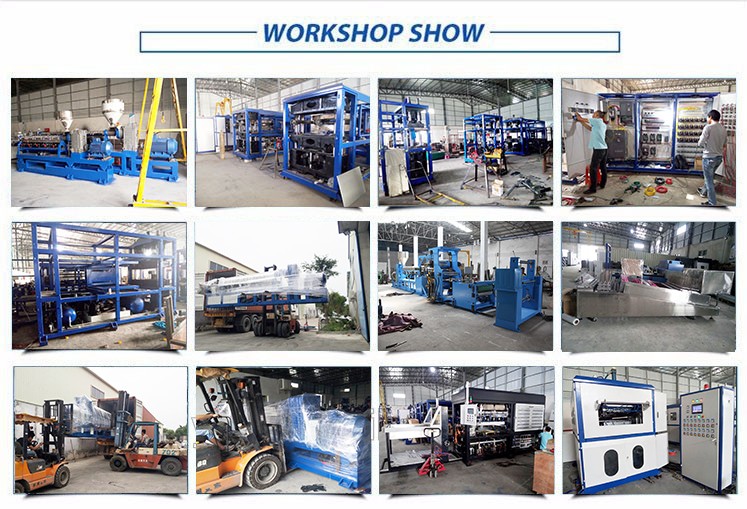

Runyuan Factory & Workshop: 工廠&車間
